Rocky Mountain Altitude Carbon 70 Coil
$9,560.00
Details
Race circuits or Sunday Shreds, the Altitude has you covered. Purpose-built and race-proven, it's the ultimate enduro weapon for demolishing steep trails and making every session faster. Sure, total enduro capability translates nicely to podiums. But it also means bigger and more committing weekend rides for the rest of us. With so much capability in your corner, it makes you want to push limits, climb faster, and get better.
Wheel size:
Size Small: 27.5-inch
Size Medium: 27.5-inch or 29-inch
Sizes Large - X-Large: 29-inch
| Size (Wheel Size) | Small (27.5) | Medium (27.5) | Medium (29) | Large (29) | X-Large (29) |
|---|---|---|---|---|---|
| Ride-9 Position | Pos. 5 - Neutral | Pos. 5 - Neutral | Pos. 5 - Neutral | Pos. 5 - Neutral | Pos. 5 - Neutral |
| Top Tube Horizontal (mm) | 579 | 603 | 610 | 638 | 671 |
| Head Tube Angle (deg) | 65° | 65° | 65° | 65° | 65° |
| Head Tube Length (mm) | 100 | 110 | 95 | 110 | 125 |
| Seat Tube Angle (deg) | 76° | 76° | 76° | 76° | 76° |
| Seat Tube Length (mm) | 380 | 420 | 420 | 445 | 480 |
| Rear Centre (mm) | 427 - 438 | 427 - 438 | 437 - 448 | 437 - 448 | 437 - 448 |
| Bottom Bracket Drop (mm) | 12 | 12 | 27 | 27 | 27 |
| Reach (mm) | 430 | 455 | 455 | 480 | 510 |
| Stack (mm) | 596 | 606 | 620 | 634 | 647 |
| Standover Height (mm) | 771 | 804 | 816 | 816 | 816 |
| Wheelbase (mm) | 1171 | 1199 | 1217 | 1249 | 1285 |
Specs

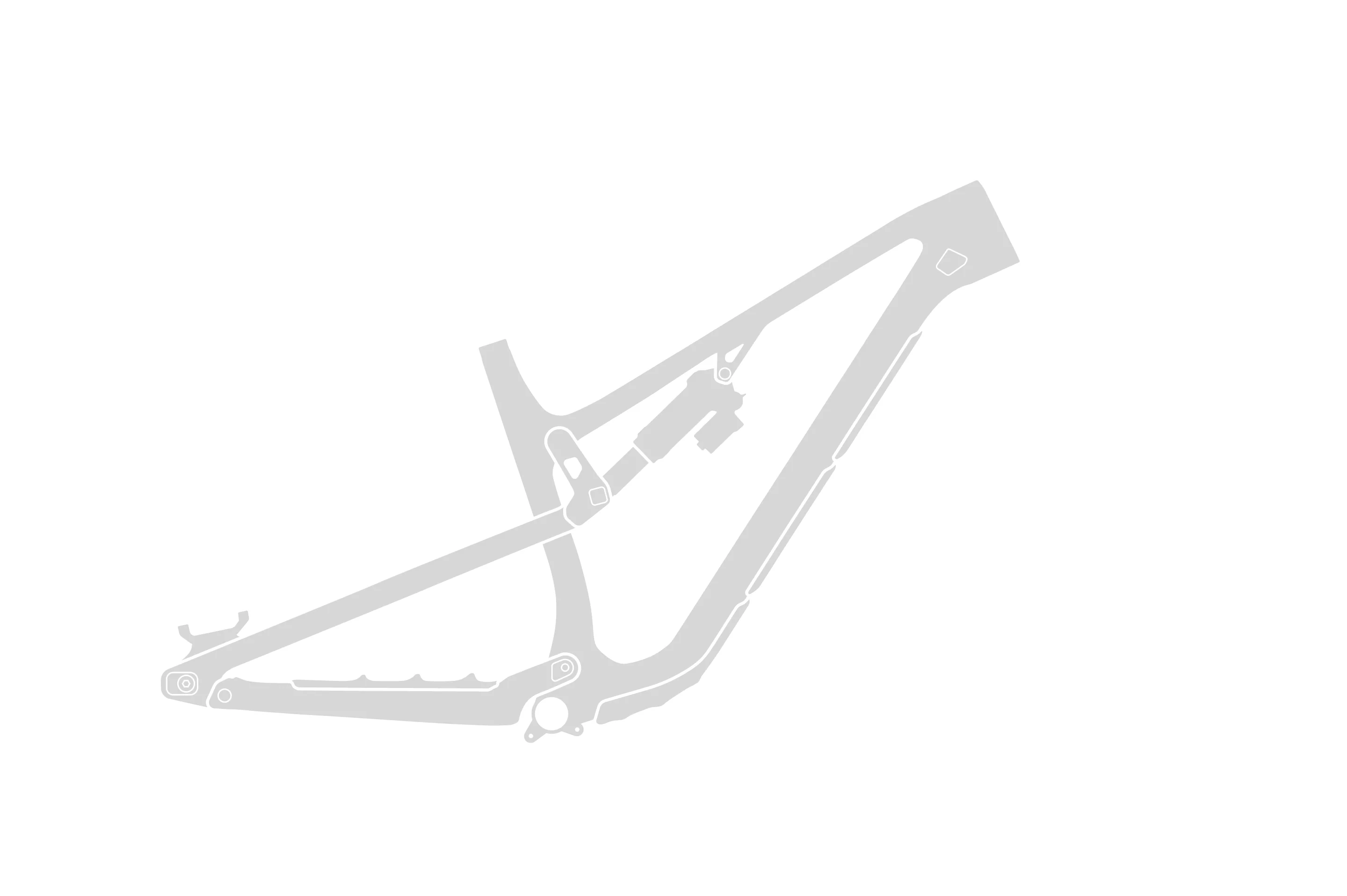

| Frame | SMOOTHWALL Carbon. Full Sealed Cartridge Bearings. Press Fit BB92. Internal Cable Routing. 2-Bolt ISCG05 Tabs. RIDE-9 Adjustable Geometry. 2 Position Axle. 160mm Travel. SMOOTHWALL Carbon Rear Triangle |
|---|---|
| Fork | Fox 36 Float EVOL GRIP2 Factory Series 170mm | 27.5 = 37mm Offset | 29 = 44mm Offset |
| Headset | FSA Orbit NO.57E | Sealed Stainless 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race |
| Rear Shock | Fox DHX2 Factory | Sealed Bearing Eyelet | 25x8mm F Hardware | SM = 210x55mm | MD - LG - XL = 230x60mm | Size-Specific tune in FAQ |
| Rims/Wheels | Race Face AR 30 | 32H | Tubeless Ready - Tape / Valves Incl |
| Hubs |
Front: Rocky Mountain Sealed Boost 15mm Rear: DT Swiss 370 Boost 148mm | 18T Star-Ratchet |
| Spokes | DT Swiss Competition 2.0/1.8/2.0 |
| Tires |
Front: Maxxis Assegai 2.5 WT 3C MaxxGrip EXO+ Tubeless Ready Rear: Maxxis Minion DHR II 2.4 WT 3C MaxxTerra EXO+ Tubeless Ready |
| Crankset | Race Face Turbine Cinch | 32T | 30mm Spindle | 170mm Crank Length |
| Bottom Bracket | Race Face BB92 30mm |
| Chain | Shimano M8100 |
| Rear Derailleur | Shimano XT |
| Cassette/Rear Cogs | Shimano XT 10-51T |
| Shifters | Shimano XT |
| Handlebars | Rocky Mountain AM | 780mm Width | 38mm Rise | 9° Backsweep | 5° Upsweep | 35 Clamp |
| Tape/Grips | ODI Elite Pro Lock On |
| Stem | Rocky Mountain 35 AM | 5° Rise | All Sizes = 40m |
| Brakes | Shimano XT Trail 4 Piston | IceTec Metal Pads | F:Shimano RT86 203mm | R:Shimano RT86 180mm |
| Pedals | Sold separately |
| Saddle | WTB Volt Race 142 |
| Seat Post | Race Face Turbine R (by Fox) Dropper 30.9mm | SM = 125mm | MD = 150mm | LG = 175mm | XL = 200mm |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Another Brick in the Wall/UD Carbon/Black Dog / Small / 27.5-inch | 770416427554 | B0268SM74 | |
| Another Brick in the Wall/UD Carbon/Black Dog / Medium / 27.5-inch | 770416427592 | B0268MD74 | |
| Another Brick in the Wall/UD Carbon/Black Dog / Medium / 29-inch | 770416427318 | B0268MD94 | |
| Another Brick in the Wall/UD Carbon/Black Dog / Large / 29-inch | 770416427356 | B0268LG94 | 210000048172 |
| Another Brick in the Wall/UD Carbon/Black Dog / X-Large / 29-inch | 770416427394 | B0268XL94 |
Rocky Mountain Altitude Carbon 70 Coil
$9,560.00
