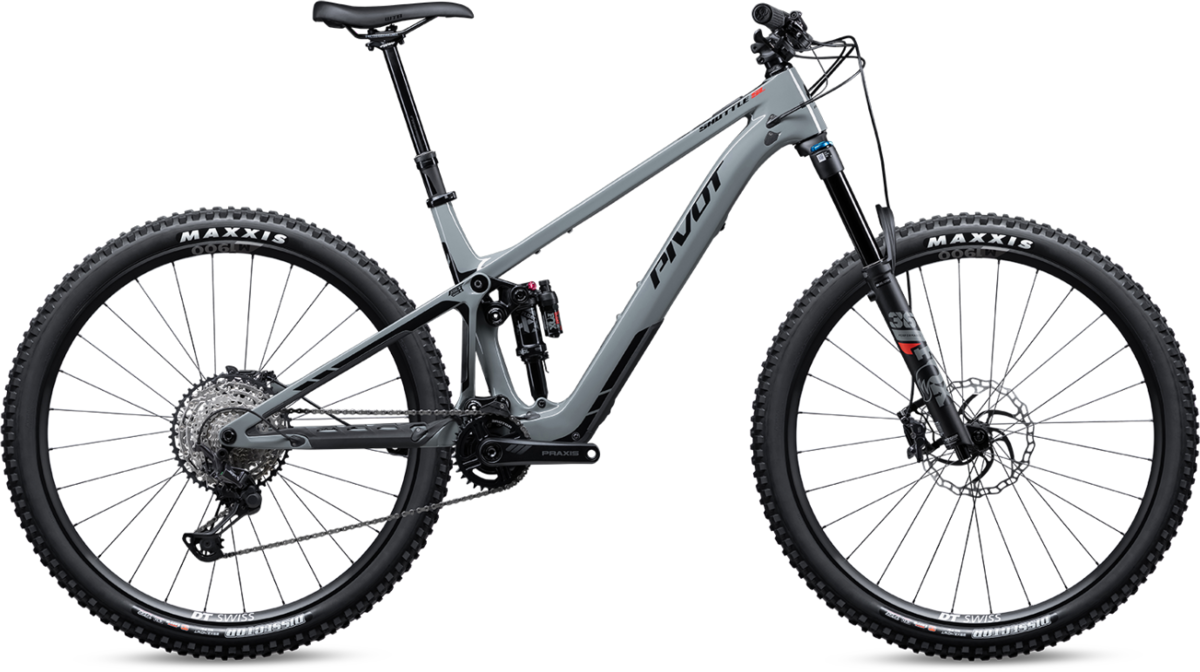

Pivot Cycles Shuttle SL Ride XT/SLX

Pivot Cycles Shuttle SL Ride XT/SLX
$9,000.00 - $11,250.00
Please select options
Contact us directly at to arrange shipping for this item!


Flipping the script that most e-bike builders are following, Pivot decided to focus on what matters - the dynamic of trail riding - and placed an emphasis on lightweight, refined suspension, crisp handling, and game-changing performance.

A 60Nm FAZUA motor, combined with a 430Wh battery, that is nestled in the downtube provides added punch to your ride, giving you the power to smash climbs and the pop for bigger moves, letting you ride farther, better, and faster. The motor and battery are situated low and close to the center of gravity - a key aspect of the Shuttle SL's dynamic handling. The Shuttle SL has the power to take you where you dream of going and give you the ride of your life there and back.


-Sleek Full Carbon Hollow Core Frame
-Seamless Integrated FAZUA Ride 60 Drive System
-Progressive Trail Geometry
-Flip Chip Geometry Customization
-Size Specific Chainstay Lengths
-132mm Travel DW-Link Suspension
-Trunnion Mounted Float X
-150mm Fox 36 Grip 2 with custom eMTB Tune
-Trail gripping Maxxis Dissector Tires
-Full-size water bottle fits inside the front triangle
-Pivot's Cable Port System
-60 Nm of Torque/ 450 Watts Peak Power
-Integrated 430 Watt/Hour Battery
-Superlight System 9.25lbs (4.2kg)
-3 Assist Levels + Boost Mode
-Drag-free pedaling without assist.
-Magnetic Charging Port & Cover
-World Cup Build starting at 36.25 pounds (sub 17kg)


-Kit: Ride SLX/XT
-Frame: Shuttle SL
-Wheel Size: 29"
-Rear Shock: Fox Performance Float X
-Fork: Fox Performance E-MTB 36 29", 44mm offset, GRIP 150mm
-Headset: Pivot precision sealed cartridge
-Rear Derailleur: Shimano XT M8100 SGS 12-speed
-Cassette: Shimano SLX M7100 10-51t
-Shifter: Shimano SLX M7100 ISPEC EV 12-speed
-Brakes: Shimano SLX M7120 4-piston
-Crankset: PRAXIS ETOR E-MTB 32t
-Handlebar: Phoenix Race Low Rise Aluminum -780mm
-Grips: Phoenix Factory lock-on
-Stem: Phoenix Team Enduro / Trail
-Seatpost: E13 Vario 150mm - 180mm (SM-MD), 180mm - 210mm (LG-XL)
-Saddle: Phoenix WTB Volt Race (medium width)
-Wheels: DT Swiss M1900 w/ DT Swiss 370 hub, 30mm - 29"
15x110 F/12x157 R
-Wheel Material: Alloy
-Front Tire: Maxxis Dissector 29" x 2.4" WT, TR, 3C, EXO, MaxxTerra
-Rear Tire: Maxxis Dissector 29" x 2.4" WT, TR, 3C, EXO, MaxxTerra
-Front Rotor: Galfer Rotor 203mm
-Rear Rotor: Galfer Rotor 180mm
-Chain: Shimano CN-M7100 12-speed

Part Numbers

Option UPC MPN Store SKU
Blue Denim / X-Small
Blue Denim / Small
Blue Denim / Medium
Blue Denim / Large
Blue Denim / X-Large
Desert Sage Grey / X-Small
Desert Sage Grey / Small
Desert Sage Grey / Medium 196338096379 00SSLV129ASXA-M 210000054599
Desert Sage Grey / Large
Desert Sage Grey / X-Large
