Opus Railtrail

Opus Railtrail
  • Color: Dark Silver
$3,680.00
Color:
Dark Silver
Please select options
This item is not permitted to be shipped, however it can be purchased online and picked up in-store. We will email you when it's ready.

Details

GO FOR MORE!

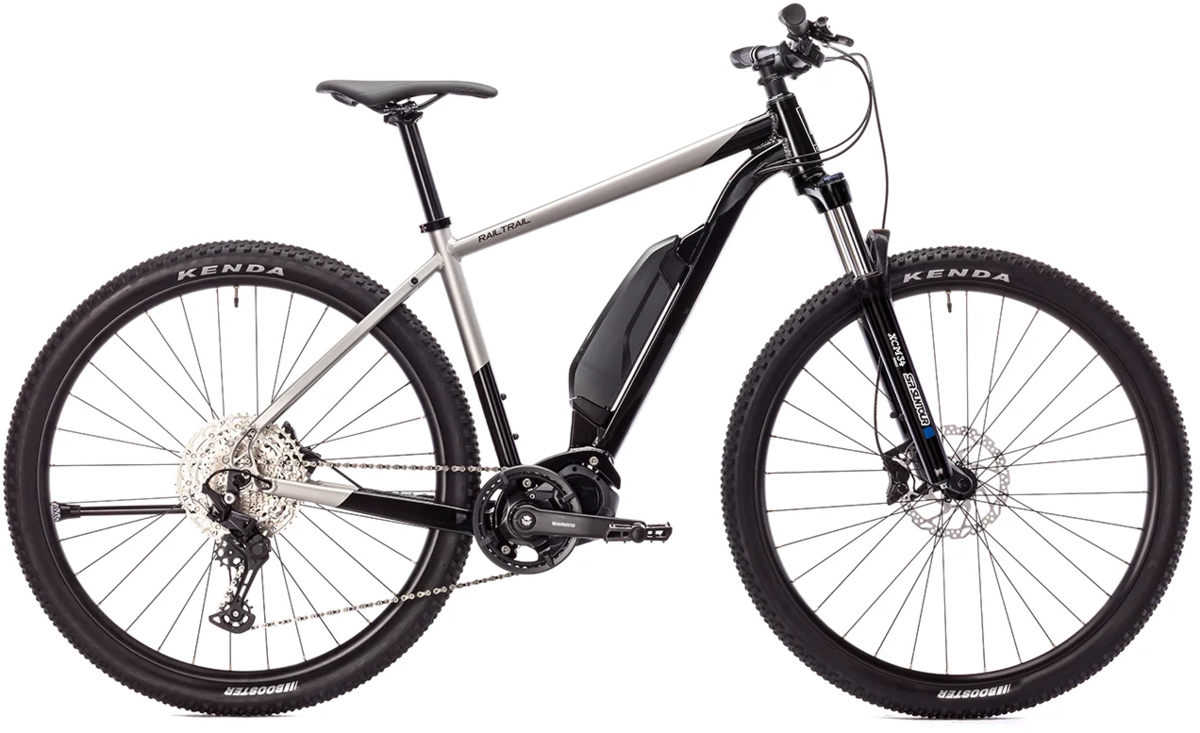

All set to explore? Then hop aboard the all-new Opus Railtrail. This versatile riding machine takes you just about anywhere you want to go. With its Shimano Steps E6100 drive system and Shimano 418Wh battery, you'll be cruising your favorite Rail Trail or sailing through your daily commute with ease. The 100mm of front suspension and awesome Kenda Tires add confidence, comfort, and control.

The new Opus Railtrail: all you need to get your ride done.

- Lightweight, trail-inspired aluminum frame
- Suntour XCM-34 100mm fork with lockout
- Shimano 1x11 drivetrain
- Shimano MT420 4-piston hydraulic disc brakes
- Shimano STePS E-6100 motor
- Shimano E-8014 418Wh semi-integrated battery

bike frame with labeled dimensions
Bike Sizes:
SML
A. Reach 383mm 395mm 421mm
B. Stack 627mm 645mm 657mm
D. Effective Top Tube 557mm 585mm 616mm
E. Head Tube Angle 69° 69.5° 69.5°
F. Head Tube Length 100mm 115mm 130mm
G. Seat Tube Angle 74.5° 73.5° 73.5°
H. Seat Tube Length 430mm 480mm 510mm
J. Bottom Bracket Drop 65mm 65mm 65mm
O. Chainstay Length 445mm 445mm 445mm
Handlebar Width 780mm 780mm 780mm
Stem Length 45mm 45mm 55mm
Crank Length 170mm 170mm 170mm

Specs

Frame Meta 30 aluminum
Fork Suntour XCM-34 100mm NLO boost with lockout
Rims Weinnman U32 TL
Hubs Shimano
Tires Kenda Booster 29 x 2.2
Bottom Bracket Shimano STePS E-6100
Crankset Shimano STePS
Chainrings 38T
Shifters Shimano Deore 11
Rear Derailleur Shimano Deore 5100
Cassette/Freewheel Shimano Deore 11-42
Chain KMC E11 EPT
Brakes Shimano BR-MT420 hydraulic disc
Brake Levers Shimano BL-MT401
Handlebars Zoom Tequila 780mm 35.0
Tape/Grips Velo ergo dual density
Stem Zoom Tequila
Headset FSA Orbit integrated sealed
Seatpost Opus Silver 31.6 x 350
Saddle Opus Endurance
Pedals FPD NW-420
Motor Shimano STePS motor E-6100 250W 60Nm; Max assisted speed: 32 km/h; Range: 125 km
Battery Shimano E-8014 418Wh 36V 11.6Ah battery
Controller/Display SC-E5000 Switch with integrated display
Charger 2A 6 hours

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Dark Silver / Small 624316099512 OP-RAILTRAILDS-S 38075
Dark Silver / Medium 624316099529 OP-RAILTRAILDS-M 38077
Dark Silver / Large 624316099543 OP-RAILTRAILDS-L 38081
