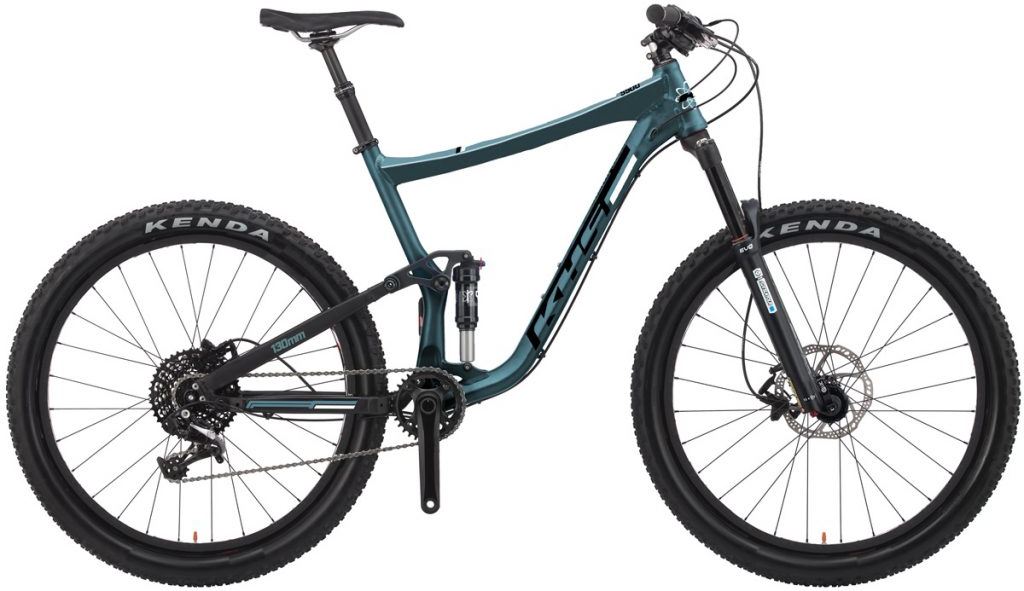

KHS 5500

KHS 5500
This item is currently not available.


- 12-speed
- 4-Bar Horst Link aluminum frame
- WTB TCS tubeless-ready wheels
- Shimano 1x12 drivetrain
- Shimano Deore 12-speed rear derailleur
- Shimano Deore shifter
- Shimano CNM6100 chain
- Shimano CS-M6100, 10-51T cassette
- WTB Volt Medium SL saddle
- Shimano MT200 hydraulic disc brakes

Wheel size:
- Size Small: 27.5-inch
- Sizes Medium – X-Large: 29-inch


Frame 4-Bar Horst Link 29/650B+ 130mm, 6061 Aluminum w/Custom Formed Double Butted T/T & D/T, 1.5 Taper, 12 x 148 Rear Axle, w/Replaceable Derailleur Hanger, Internal Cable
Fork SR XCR34 Boost, LOR Air, S: 27.5, M-XL: 29", 140mm, 34mm Stanchions, Aluminum Steerer, Magnesium Lowers, Hydraulic Damp, External rebound, Lock-Out, 1.5 Taper, 15QR x 110mm
Rear Shock X-Fusion 02 Pro RL, Air, Ext Rebound, Lock-Out
Rims WTB ST=S:i35, M-XL: i29 TCS, Disc, Double Wall, 32H, Tubeless-Ready
Hubs Front: Formula Sealed Bearing Aluminum Disc, 15mm, 110mm Boost
Rear: Formula Sealed Bearing Aluminum Disc, Cassette, 12 x 148mm Boost
Spokes 14G Stainless Black w/Aluminum Nipples, 32x32
Tires Kenda Regolith Pro, S:27.5 x 2.6", M-XL:29 x 2.4", 120TPI, Folding, Tubeless-Ready
Bottom Bracket SR Outboard Cartridge Bearing
Crankset SR Zeron, 2-pc, Boost, 30T Zig/Zag, S:170, M-XL: 175
Shifters Shimano Deore, SL-M6100, 12s, Trigger, Right Only
Rear Derailleur Shimano Deore, RD-M6100
Cassette/Freewheel Shimano CS-M6100, 10-51T, 12-Speed
Chain Shimano CN-M6100
Brakes Shimano MT200 Hydraulic Disc, 180/160mm Rotors Wave 12
Brake Levers Shimano MT200
Handlebars Aluminum 35mm Riser, 780 x 15mm
Tape/Grips Q2 Lock-on
Stem 35mm Aluminum 3D Forged, Threadless 4-bolt
Headset FSA Orbit 1.5E, Zero Stack, 1-1/8"~1.5
Seatpost Kind Shock Exa-Form KSP-900-i, Integra w/Remote, Travel Adjust, 31.6mm
Saddle WTB Volt Medium SL
Pedals Sold separately

* Subject to change without notice.
